Its been a while since I did any IPCam stuff, but I’ve now got most of the bits I needed together again, as well as a new laptop for dev work (curse the thieves that stole my last one!)

As we recall from previous work, the main binary for the IPCam runs off a file called “camera”.

As some people have discovered, it likes to reboot the equipment when its not happy (eg when the camera is unplugged, it has issues talking to hardware, or when someone has flashed the wrong firmware).

So, lets take a look at the executable to see what interesting bits we can find out from it.

#file camera tells us – BINFLT file format. Fileflags: RAM GZIP.
So we know its a compressed bflt elf – bflt stands for binary flat file, and it uses gzip compression. It also sits in ram.

A hex dump of camera shows this for the first few bytes:

62 46 4C 54 00 00 00 04 | bFLT . . . .

[Note - I had about 4 pages of #$%# work done on this, and WordPress decided to flake once finished due to an errant pasted 0x0 null byte above, cutting off the rest of my post, so this is going to be shorter and angrier than it was originally written.
Lesson learned, always save stuff elsewhere before posting.
]

bFLT headers consist of 4 bytes identifier, then 4 bytes for the version number.
In this case, its a version 4 bFLT file.

If we take a look at the header file source for bflt at the uclinux site we see the below layout.


struct flat_hdr {
char magic[4];
unsigned long rev; /* version */
unsigned long entry; /* Offset of first executable instruction with text segment from beginning of file */
unsigned long data_start; /* Offset of data segment from beginning of file */
unsigned long data_end; /* Offset of end of data segment from beginning of file */
unsigned long bss_end; /* Offset of end of bss segment from beginning of file */
/* (It is assumed that data_end through bss_end forms the bss segment.) */
unsigned long stack_size; /* Size of stack, in bytes */
unsigned long reloc_start; /* Offset of relocation records from beginning of file */
unsigned long reloc_count; /* Number of relocation records */
unsigned long flags;
unsigned long filler[6]; /* Reserved, set to zero */
};

It doesn’t match up properly, as the sizes or code don’t make sense (yet).

If we take a closer look, the header file has this to say:


#define FLAT_FLAG_RAM 0x0001 /* load program entirely into RAM */
#define FLAT_FLAG_GOTPIC 0x0002 /* program is PIC with GOT */
#define FLAT_FLAG_GZIP 0x0004 /* all but the header is compressed */

Ahah!

So, all but the header is compressed for a version 4 file.

Lets check this out, and see if its correct.
Excluding the initial file identifier (bFLT), our header consists of 10 longs. Thats 40 bytes long.
Lets jump to offset 40 in the file, and see what we have there.

1F 8B 08

Those of you familiar with gzipped files will recognize that – its the gzip header identifier. So, so far, so good.
Compressed files aren’t very useful to us, as they don’t show much text content.
So, we could unzip the file to take a look at whats inside.

There are a number of ways we can unzip this (zcat, gzip -d etc), but I’m going to be lazy, and use someone elses premade code.

See below for some perl to safely uncompress our binary , taken from here – http://www.openwiz.org/wiki/BWFWTools_Release


#!/usr/bin/perl

=pod

=head1 NAME

gunzip_bflt - convert gzip-compressed bFLT executable files into uncompressed bFLT

=head1 SYNOPSIS

gunzip_bflt zipped_blflt_files...

=head1 DESCRIPTION

Convert gzipped bFLT files into an uncompressed bFLT files.
The unzipped bFLT files have B<.unz> added to their file names.
If the file is already ungzipped bFLT, it isn't converted,
but a warning is printed.

=head1 PREREQUSITES

Uses packages C and C.

=cut

use strict;
use warnings;

# gunzip_bflt zipped_blflt_files...

use IO::Uncompress::Gunzip qw/gunzip $GunzipError/;
use POSIX;

# Read and return the BFLT header
# prints a warning and returns undef on error.
# $bfltZfh is the BFLT file handle,
# $bfltZ is the BFLT file name (for error messages)

sub get_bflt_hdr($$) {
my ($bfltZfh, $bfltZ) = @_;
my $buf;
my $res = sysread $bfltZfh, $buf, 64;
if(!defined($res)) {
warn "$bfltZ: $!\n";
return undef;
}
if($res < 64) {
warn "$bfltZ: Too short!\n";
return undef;
}
# Align the buffered file handle with the unbuffered
seek $bfltZfh, sysseek($bfltZfh, 0, SEEK_CUR), SEEK_SET;
return $buf;
}

# Expand a gzipped BFLT intoi an ungziped BFLT

sub expand_blftZ($) {
my ($bfltZ) = @_;
my $bflt = $bfltZ . '.unz';
if(!open BFLTZ, '<' . $bfltZ) {
warn "$bfltZ: $!\n";
return;
}
my $hdr = get_bflt_hdr(\*BFLTZ, $bfltZ);
if(!defined $hdr) {
return;
}
if(substr($hdr, 0, 4) eq 'bFLT') {
# Pack/unpack template for the BFLT header, 4 bytes ACSII,
# 15 little-endian words
my $hdrFmt = 'a4 N15';

my @unpHdr = unpack $hdrFmt, $hdr;

# Test the header flags 'gzipped' bit
if($unpHdr[9] & 4) {

# Unset the header flags 'gzipped' bit, and make a new header
$unpHdr[9] &= ~4;
$hdr = pack $hdrFmt, @unpHdr;

if(open BFLT, '>' . $bflt) {

# Write the header
syswrite BFLT, $hdr;

# Align the buffered file handle with the unbuffered
seek BFLT, sysseek(BFLT, 0, SEEK_CUR), SEEK_SET;

# Ungzip from the compressed file into the uncompressed
# file
gunzip \*BFLTZ => \*BFLT
or die "gunzip failed: $GunzipError\n";

close BFLTZ;
} else {
warn "$bflt: $!\n";
return;
}
} else {
warn "$bfltZ: Not a compressed bFLT file, not gunzipped\n";
return;
}
} else {
warn "$bfltZ: Not a bFLT file\n";
}
close BFLT;
}

# Expand the arguments...

foreach my $bfltZ (@ARGV) {
expand_blftZ($bfltZ)
}

If we run that on our ‘camera’ executable, we should have an uncompressed bFLT file as output ‘camera.unz’.
Lets run strings on ‘camera.unz’, to see what interesting text content is in there.

Some interesting things of note:

From the variables list below, looks like there is a way to turn off the LED…

led_mode
ptz_center_onstart
ptz_auto_patrol_interval
ptz_auto_patrol_type
ptz_patrol_h_rounds
ptz_patrol_v_rounds
ptz_patrol_rate
ptz_patrol_up_rate
ptz_patrol_down_rate
ptz_patrol_left_rate
ptz_patrol_right_rate

We also have a full list of the internal cgi functions now, which might prove useful…

snapshot.cgi
get_status.cgi
get_camera_params.cgi
decoder_control.cgi
camera_control.cgi
reboot.cgi
restore_factory.cgi
upgrade_firmware.cgi
upgrade_htmls.cgi
get_params.cgi
set_alias.cgi
set_datetime.cgi
set_users.cgi
set_devices.cgi
set_network.cgi
set_wifi.cgi
set_pppoe.cgi
set_upnp.cgi
set_ddns.cgi
set_ftp.cgi
set_mail.cgi
set_alarm.cgi
videostream.cgi
video.cgi
test_ftp.cgi
test_mail.cgi
set_misc.cgi
get_misc.cgi
set_p2p.cgi
get_p2p.cgi
set_forbidden.cgi
get_forbidden.cgi
set_decoder.cgi
comm_write.cgi
wifi_scan.cgi
get_wifi_scan_result.cgi
get_log.cgi
check_user.cgi
check_user2.cgi
backup_params.cgi
restore_params.cgi
erase_allparams.cgi
set_mac.cgi
do_cgi: unknown cgi

You can see that Maverick decided to fake the X-Mailer smtp header (Foxmail is a commonly used Mail Program in China).

MIME-Version: 1.0
Content-Type: multipart/mixed;
boundary=”smtp_msg_boundary”
X-Mailer: Foxmail
–smtp_msg_boundary
Content-Type: image/jpeg;
name=”%s(%s)_%c%s.jpg”
Content-Transfer-Encoding: base64
–smtp_msg_boundary–

I’m interested in why the firmware reboots on some firmwares though, so lets take a deeper look at the code.

To do so, we’ll need to decompile it.
The better equipped than me will probably use something like the nice ARM decompiler plugin for IDA-Pro called Hex-Ray. Unfortunately that costs $$$, and I’m just a hobbyist.

Luckily there is a free windows decompiler called arm2html available here.
arm2html doesn’t handle compressed bFLT files though, so you’ll need to point it at the freshly ungzipped code you got from the perl script above.

As we know that the camera executable reboots after issuing i2c errors, the first piece of decompiled code I wanted to look at was the first piece of code related to i2c:

(excerpted piece below)
02588: e1a0c00d mov ip, sp
00258c: e92dd810 stmdb sp!, {r4, fp, ip, lr, pc}
002590: e24cb004 sub fp, ip, #4 ; 0x4
002594: e24dd00c sub sp, sp, #12 ; 0xc
002598: e59f023c ldr r0, [pc, #572] ; [0027dc] "/dev/i2c0"
00259c: e3a01002 mov r1, #2 ; 0x2
0025a0: eb00c9b8 bl 034c88(c9b8)
0025a4: e1a04000 mov r4, r0
0025a8: e3540000 cmp r4, #0 ; 0x0
0025ac: aa000003 bge 0025c0(3) ; jump
0025b0: e59f0228 ldr r0, [pc, #552] ; [0027e0] "%s: can not open i2c device"
0025b4: e59f1228 ldr r1, [pc, #552] ; [0027e4] "zoom_test"
0025b8: eb00bc86 bl 0317d8(bc86)
0025bc: e91ba810 ldmdb fp, {r4, fp, sp, pc} ; return

The full piece of code essentially loops 7 times trying to open the i2c sensor to call the zoom_test code. If it fails, it calls for a reboot.
Success proceeds to setting up the camera.

We know from our boot log that my camera in this model is a Sonix288.

dvm usb cam driver 0.0.0.0 by Maverick Gao in 2006-8-12
usb.c: registered new driver dvm
dvm usb cam driver 0.1 for sonix288 by Maverick Gao in 2009-4-20
usb.c: registered new driver dvm usb cam driver for sonix288

The Sonix288 is a chipset SoC that will talk to an attached image sensor via i2c. I think that the Sonix288 is probably a standard USB 1.1/2.0 compatible UVC (USB Video Class) chipset from a bit of googling about it.

We don’t have the source for our particular camera though (its secret, much like the data sheets, grrr…).
What to do?
Linux generally uses spcaxxx (and UVC) drivers for talking to camera’s, so lets start taking a look there.

http://read.pudn.com/downloads127/sourcecode/unix_linux/539050/zc030x/zc030x_cameras.c__.htm

http://www.hackchina.com/r/54654/zc030x_i2c.c__html

Taking a look at some spcaxxx driver header files and code shows that i2c is setup by first getting the USB VID, USB PID of the hardware, then talking to the i2c device on that hardware.

So, we need to know what our USB VID and PID’s are.

Generally all devices from a given manufacturer will have a single VID as issued by the USB Forum.

If we search through the code for Sonix, it appears that Sonix’s VID is 0x0c45

{USB_DEVICE(0x0c45, 0x607c)}, /* Sonix sn9c102p Hv7131R */
(from http://linux.downloadatoz.com/linux-kernel-webcams-driver-gspca-spca5xx/ )

The Linux UVC page confirms this http://www.ideasonboard.org/uvc/.

(Listings of webcams excerpted – note the VID of 0c45)

0c45:6310 USB 2.0 Camera (Trust Chat Webcam) Sonix Technology
0c45:63e0 Sonix Integrated Webcam (Dell notebooks) Sonix Technology
0c45:63ea Laptop Integrated Webcam 2M (Dell Studio 1555 notebooks) Sonix Technology
0c45:6409 USB 2.0 Camera (Nokia Booklet 3G netbooks) Sonix Technology
0c45:6415 Laptop Integrated Webcam 1.3M (Dell Inspiron 13z notebooks) Sonix Technology

Ideally at this point, I’d have a data sheet for the Sonix288 chip, but the #$%#$ people at Sonix don’t seem to publish one for us mere mortals.

So, we’ll use the next best thing, and use one for their other chipsets.

SN9C1xx PC Camera Controllers –
http://ww2.cs.fsu.edu/~rosentha/linux/2.6.26.5/docs/video4linux/sn9c102.txt

There is a lot of good useful info in that particular file. We don’t know how much is useful yet, but generally chipsets are quite similar for a given range.

Image sensor / SN9C1xx bridge | SN9C10[12] SN9C103 SN9C105 SN9C120
——————————————————————————-
HV7131D Hynix Semiconductor | Yes No No No
HV7131R Hynix Semiconductor | No Yes Yes Yes
MI-0343 Micron Technology | Yes No No No
MI-0360 Micron Technology | No Yes Yes Yes
OV7630 OmniVision Technologies | Yes Yes Yes Yes
OV7660 OmniVision Technologies | No No Yes Yes
PAS106B PixArt Imaging | Yes No No No
PAS202B PixArt Imaging | Yes Yes No No
TAS5110C1B Taiwan Advanced Sensor | Yes No No No
TAS5110D Taiwan Advanced Sensor | Yes No No No
TAS5130D1B Taiwan Advanced Sensor | Yes No No No

Interesting… Hmm, so it seems that Sonix uses a SN9Cxxx for its product names.
Lets google for SN9C288 instead, and see if we get any results.

Bingo.

From here – www.lh-invest.com/en/showpro.asp?id=308&proid=3

* MCU: SONIX SN9C288
* Sensor: MICRON K14 1,300,000 pixels CMOS
* 5-glass lens,can reach 30 frames/sec. under 640*480
resolutions,software insertion value 1,300,000 pixels
* Focus range: 3CM to infinitude farness
* Dynamic video resolutions: 1280*960 pixels(max.)
* Support microsoft UVC driver-free function
* Support RGB24 and YUY2 two kinds of image formats
* USB 2.0 port,support plug and play
* Human face tracking function

Seems our chipset is finally getting some details.
Max resolution, video modes, face tracking capability, etc
We also know that it can be paired with a Micron K14 image sensor.

Further googling reveals it can also be paired with the MI-0360 (which is listed above).

SN9C288+MI0360

This page also gives us a possible pid:

http://forums.lenovo.com/t5/SL-Series-ThinkPad-Laptops/camera-problem-in-all-windows-Creation-of-the-Video-preview/m-p/163019/highlight/true

“Device Name: ?USB Video Device

PnP Device ID: VID = 0C45 PID = 62C0
Serial Number: 6&&2BCAFCF3&&0&&0000
Revision: (Information not returned)

Device Type: Standard USB device – USB2.0 High-Speed

Chip Vendor: SONiX
Chip Part-Number: SN9C288PFG

In Microsoft parlance, this looks like this USB\VID_0C45&PID_62C0

Googling that gives us a product with windows drivers (HP) and more.

http://www.downloadwindowsdrivers.info/usb/vid_0c45/pid_62c0/mi_00/

Also says that these product drivers also work.
USB\VID_0C45&PID_62C0 ;SN9C211/213/230

That means we can take a look at their inf file and see if anything useful in there. Unfortunately I did, and there isn’t much :(

Sonix has datasheets for some of their other products available though (SN9C2028AF).

First, a quick overview of UVC devices (snarfed from elsewhere).

USB devices are required by the USB specification to respond to the Host device (the computer) with a stream of data describing the device and the interface to the device. This “Device Descriptor” includes vendor, product, and version IDs specific to the manufacturer, the product, and the version of the product. In addition to the device information, the descriptor also includes information on how to talk to the device through a series of “Interface Descriptors”.

The device descriptor for Video is 13.

#define USB_DEVICE_CLASS_VIDEO 0x0E

In addition to the end points described in the interface descriptors, all USB devices support a control pipe to end point 0. This is used to manipulate some of the low level functions of the device such as power, and error status queries.

The USB Video specification describes two interfaces, a control interface to manage the camera, and a stream interface to send or receive video information from the camera.

The control interface is used to manipulate the camera parameters such as brightness and contrast as well as to negotiate a valid set of the video format, frame size, frame rate, and compression rates parameters that describe a video stream. In addition, the control interface can ask the camera for still frame.

In the datasheet for the 2028, it basically states that they use end point 0 for STD Commands, with a maximum packet size of 64 bytes.

Further googling reveals that there is no special driver for it, its a plain UVC 1.0 device.

usb 1-2: New USB device strings: Mfr=2, Product=1, SerialNumber=0
usb 1-2: Product: USB 2.0 Camera
usb 1-2: Manufacturer: Sonix Technology Co., Ltd.
Linux video capture interface: v2.00
uvcvideo: Found UVC 1.00 device USB 2.0 Camera

Further heavy baidu’ing in Chinese sites finds that the SN9C213 and SN9C288 are the same pretty much.

其内部编号是SN9C213,功能完全和SN9C288一样。From http://ep.cbifamily.com/2007/04/44/87819.html

David McCullough very nicely also compiled in usb debug support on his kernel and ran some tests too:

> > > T: Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 2 Spd=12 MxCh= 0
> > > D: Ver= 2.00 Cls=ef(unk. ) Sub=02 Prot=01 MxPS=64 #Cfgs= 1
> > > P: Vendor=0c45 ProdID=62f1 Rev= 1.00
> > > S: Manufacturer=Sonix Technology Co., Ltd.
> > > S: Product=USB 2.0 Camera
> > > C:* #Ifs= 2 Cfg#= 1 Atr=80 MxPwr=500mA
> > > I: If#= 0 Alt= 0 #EPs= 1 Cls=0e(unk. ) Sub=01 Prot=00 Driver=(none)
> > > E: Ad=83(I) Atr=03(Int.) MxPS= 16 Ivl=6ms
> > > I: If#= 1 Alt= 0 #EPs= 0 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > I: If#= 1 Alt= 1 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 128 Ivl=1ms
> > > I: If#= 1 Alt= 2 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 256 Ivl=1ms
> > > I: If#= 1 Alt= 3 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 512 Ivl=1ms
> > > I: If#= 1 Alt= 4 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 600 Ivl=1ms
> > > I: If#= 1 Alt= 5 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 800 Ivl=1ms
> > > I: If#= 1 Alt= 6 #EPs= 1 Cls=0e(unk. ) Sub=02 Prot=00 Driver=(none)
> > > E: Ad=81(I) Atr=05(Isoc) MxPS= 956 Ivl=1ms

The uvc driver status is obviously an issue as we’re on a 2.4 Kernel. No uvc support on 2.4.
So…, we either compile 2.6 with UVC support, and reflash, or we continue to use Mavericks driver in lieu of any source.

With that, you have some background on things..
Now, why does this cause a reboot on some machines?

Well, the hardware is different, so the hardware isn’t seen by the driver.
From looking at a few different boards I have seen a few devices id’s used.

So far I have seen these:
vid_0c45/pid_62f1 – (The Sonix Chipset allows you to write pid’s into the device, so this can be changed, or alternately change the driver from 62c0 to 62f1 on these models)

vid_0c45/pid_62c0 – (Our driver is compiled for this)

For those of you with rebooting machines, remove ‘camera &’ from the boot sequence, recompile the kernel with USB verbose debug message logging, and start posting your vid/pid’s here so we can compare, and add to the list.

If someone twisted my arm I could probably oblige…

References:
http://www.beyondlogic.org/uClinux/bflt.htm – bFLT file format details.
http://www.garykessler.net/library/file_sigs.html – Common file format headers
http://www.openwiz.org/wiki/BWFWTools_Release – bFLT unzip and other tools
http://www.hex-rays.com – IDA Pro and Hex-Ray ARM Decompiler
http://www.sigmaplayer.com/filebase.php?d=1&id=13&c_old=5&what=c&page=1 – Arm Decompiler
http://www.ideasonboard.org/uvc/
http://read.pudn.com/downloads127/sourcecode/unix_linux/539050/zc030x/zc030x_cameras.c__.htm
http://www.hackchina.com/r/54654/zc030x_i2c.c__html
http://linux.downloadatoz.com/linux-kernel-webcams-driver-gspca-spca5xx/
http://ww2.cs.fsu.edu/~rosentha/linux/2.6.26.5/docs/video4linux/sn9c102.txt

Files from this post:
(arm2html.exe, bFLT gunzip perl script, original camera bFLT, uncompressed camera bFLT, and camera asm source )
Camera Disassembly, unpacked bFLT and Tools

flattr this!

I’ve uploaded a zip of my built test image here. I’ve only included telnetd, and ftpd, as the sshd binary is very large, and won’t fit into our rom image space!

If someone is willing to test, feel free.

Test Rom with FTPD and TELNETD binaries added

This rom is 700k+- vs the normal 550kb. So this may / may not overwrite the web ui.

As China’s firewall is being particularly obnoxious this week as to what I can view on the web, I can’t actually get to the info I need to see where they typically write the UI to in rom.

In theory, we should be able to write to the same base address via the boot loader.

The original rom is written here -

Image: 6 name:romfs.img base:0×7F0E0000 size:0×0008D000 exec:0×7F0E0000 -a

And I’m pretty sure that the UI gets written somewhere after this, and not as a separate image. I’d have to run Windows and a sniffer to test this though (using their firmware update software).

Our boot logs show that linux blkmem driver is set to view the whole area from 0×7F0E0000 through to 0x7F16D3FF, so we should easily have 200kb to waste^Hplay with.

From my boot logs:

Blkmem 1 disk images:
0: 7F0E0000-7F16D3FF [VIRTUAL 7F0E0000-7F16D3FF] (RO)

Obstensibly, this should be a matter of going to the bootloader over serial, then uploading our img file.
Suggest rename from testrom.img to romfs.img to be consistent.

It should be something like this:

bootloader > del 6
(delete the current romfs.img)

bootloader > fx 6 romfs.img 0x7f0e0000 0x7f0e0000 -a
Waiting for download
Press Ctrl-x to cancel … (while it waits, you have to select Transfer > Send File in Hyperterminal menu, choose the Xmodem protocol and select my rom image)
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Flash programming …

bootloader> boot

Then see what happens in the logs.

It should boot, then attempt to run telnetd and ftpd.
That probably WON’T work just yet, as they’ll complain about missing /etc/ config files.

You might also be missing the UI (as I think this gets written somewhere after our romfs.img in flash)

Send me the serial logs in the comments, and I can fix that up, and repackage.

I also know why the alleged clones (NB they’re not f..king clones sigh, they’re all made by 1 manufacturer here for different people, including FOSCAM) don’t work. The linux.bin for older firmware is set to boot from 0x7f0D0000 as opposed to 0x7f0e0000, so image 6 and 7 both need to be reflashed.

Also of note is that the newer units have gone cheaper, and use 2M flash, previous units had 4M.
uCLinux reports 8M, but its not talking about Flash, just RAM

Be prepared to brick (not completely, as we have a bootloader, and can reflash the original firmware) if it doesn’t work.

If my rom above doesn’t work initially for you, try flashing this linux.zip before reverting, and see if that helps it boot.

eg

bootloader> del 7

bootloader> fx 7 linux.zip 0x7f020000 0x8000 -acxz
Waiting for download
Press Ctrl-x to cancel ... (while it waits, you have to select Transfer > Send File in Hyperterminal menu, choose the Xmodem protocol and select my linux.zip)
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Flash programming ...

bootloader> fx 6 romfs.img 0x7f0e0000 0x7f0e0000 -a
Waiting for download
Press Ctrl-x to cancel ... (while it waits, you have to select Transfer > Send File in Hyperterminal menu, choose the Xmodem protocol and select my rom image)
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Flash programming ...

Why aren’t I doing this?

Mostly as I don’t currently have a good serial connection, I’m waiting on headers. Currently I have to hold the serial ports onto the board with fingers, and thats less than reliable!

I should get around to fixing that soonish though, I’m interested in testing this myself…

I’d also appreciate the French contingent adding some info. I’m particularly interested in paillassou’s board photos, and any other firmware people have found for these so I can compare.

I can’t get to Picasa, GadgetVictims, IrishJesus now in China. Grrr.

Yes, I know, use a VPN or proxy… Unfortunately what we do precludes doing so, as I’d probably get told off by our beloved government here, and thats not worth the risk…

Comments please.

flattr this!

So far in this series, we’ve learnt a few things.
First, is that this hardware is quite nice for hacking purposes, as they’ve left the uBoot in a nice state, and have easily accessible debug ports.
Second is that doing this kind of thing isn’t really that complicated, and can be quite fun.

We’re pretty much ready to start doing our own coding, as we know how the images are packed, and we can use the uBoot to either flash onl the romfs on or own, or alternately roll a complete linux + romfs binary image.

For that, we’ll need to be ready to roll up our sleeves, and actually do some development (finally!).

Getting a development environment setup is our next step, as we’re ready to test out adding binaries.

I’m using Debian, but most Linux environments should be similar. OSX is BSD based, and more of a pain due to Apple not putting everything needed in the normal places, so I’m doing this in a VM on my Macbook under Debian.

Go grab a copy of “NUC700 Series MCU uCLinux BSP.zip” from here http://www.metavert.com/public/NO-SUPPORT/

Setup a VM for Debian (not going to cover that) or install Debian or similar.

Copy the zip file to /home in the OS you use.

cd /home
mkdir N745
cd N745
unzip ../NUC700\ Series\ MCU\ uCLinux\ BSP.zip

You should now see something like this:

:/home/N745/NUC700 Series MCU uCLinux BSP# ls -al
total 68
drwxr-xr-x 6 root root 4096 2009-05-15 20:02 .
drwxr-xr-x 3 root root 4096 2010-04-30 02:23 ..
drwxr-xr-x 3 root root 4096 2009-05-15 20:06 bootloader
drwxr-xr-x 2 root root 4096 2009-05-15 20:03 bsp
drwxr-xr-x 2 root root 4096 2009-05-15 20:02 doc
drwxr-xr-x 4 root root 4096 2009-05-15 20:02 mkrom
-r--r--r-- 1 root root 44632 2009-03-27 11:49 NUC700 uClinux BSP Release Note.pdf
debian:/home/N745/NUC700 Series MCU uCLinux BSP#

Unfortunately the build *really* doesn’t like long filenames, so lets move all this to the N745 folder, and get rid of the annoyingly named folder.


/home/N745/NUC700 Series MCU uCLinux BSP# mv * ..
/home/N745/# cd ..
/home/N745/# rm -r NUC700\ Series\ MCU\ uCLinux\ BSP/

We still need to unzip the BSP, as its compressed, so go into bsp


/home/N745/# cd bsp
/home/N745/bsp# tar -xzvf NUC700BSP.tar.gz
NUC700BSP/
NUC700BSP/arm_tools.tar.gz
NUC700BSP/install.sh
NUC700BSP/arm_tools_3.3.tar.gz
NUC700BSP/build.tar.gz
NUC700BSP/applications.tar.gz
NUC700BSP/uClinux-dist.tar.gz

Yay, yet another bloody subdirectory. Sigh.


/home/N745/bsp# cd NUC700BSP
debian:/home/N745/bsp/NUC700BSP# ls -al
total 183300
drwxr-xr-x 2 shanghaiguide shanghaiguide 4096 2009-03-26 22:38 .
drwxr-xr-x 3 root root 4096 2010-04-30 02:29 ..
-rw-r--r-- 1 shanghaiguide shanghaiguide 29521418 2009-03-26 21:55 applications.tar.gz
-rw-r--r-- 1 shanghaiguide shanghaiguide 43742203 2009-03-26 21:22 arm_tools_3.3.tar.gz
-rw-r--r-- 1 shanghaiguide shanghaiguide 36108739 2009-03-26 21:11 arm_tools.tar.gz
-rw-r--r-- 1 shanghaiguide shanghaiguide 5643452 2009-03-26 21:24 build.tar.gz
-rwxr--r-- 1 shanghaiguide shanghaiguide 4370 2009-03-26 22:31 install.sh
-rw-r--r-- 1 shanghaiguide shanghaiguide 72439431 2009-03-26 20:53 uClinux-dist.tar.gz
debian:/home/N745/bsp/NUC700BSP#

Run the install – I’ve decided to install the whole shebang to /home/N745

Note – The observant amongst you will notice I’m running this as root.
This is NOT recommended. I’m running under a VM solely created to play with this, so I don’t really care if I break it (as I can roll back to the initial install image fairly easy in vmware). Don’t do this yourselves (unless you want to break things).


debian:/home/N745/bsp/NUC700BSP# ./install.sh
firstly install arm_tools.tar.gz -->/usr/local/
wait for a while
successfully finished installing arm_tools.tar.gz
now begin to install build.tar.gz,applications.tar.gz and uClinux-dist.tar.gz
Please enter your absolute path for installing build.tar.gz, applications.tar.gz and uClinux-dist.tar.gz:
/home/N745
/home/N745 has existed
please wait for a while, it will take some time
whole installation finished successfully!
debian:/home/N745/bsp/NUC700BSP#

We finally have our build environment unzipped, and its sitting in nuc700-uClinux.

debian:/home/N745# cd nuc700-uClinux/
debian:/home/N745/nuc700-uClinux# ls -al
total 24
drwxr-xr-x 6 root root 4096 2010-04-30 02:31 .
drwxr-xr-x 7 root root 4096 2010-04-30 02:31 ..
drwxr-xr-x 7 root root 4096 2009-03-25 00:44 applications
drwxr-xr-x 2 root root 4096 2009-03-26 21:23 image
drwxr-xr-x 12 root root 4096 2009-03-26 04:54 romdisk
drwxr-xr-x 10 root root 4096 2009-03-26 06:50 uClinux-dist
debian:/home/N745/nuc700-uClinux#

uClinux-dist has the default binaries we want, plus we need to configure the kernel, so lets visit there first (the more adventurous can look at the other folders)


debian:/home/N745/nuc700-uClinux# cd uClinux-dist/
debian:/home/N745/nuc700-uClinux/uClinux-dist# ls -al
total 84
drwxr-xr-x 10 root root 4096 2009-03-26 06:50 .
drwxr-xr-x 6 root root 4096 2010-04-30 02:31 ..
drwxr-xr-x 2 root root 4096 2009-01-22 23:27 bin
drwxr-xr-x 3 root root 4096 2009-03-26 06:50 config
-rw-r--r-- 1 root root 18007 2009-01-22 23:29 COPYING
drwxr-xr-x 3 root root 4096 2009-01-22 23:27 Documentation
drwxr-xr-x 11 root root 4096 2009-01-22 23:29 freeswan
drwxr-xr-x 5 root root 4096 2009-01-22 23:29 lib
drwxr-xr-x 15 root root 4096 2009-03-26 06:50 linux-2.4.x
-rw-r--r-- 1 root root 3228 2009-01-22 23:28 MAINTAINERS
-rw-r--r-- 1 root root 7977 2009-01-22 23:27 Makefile
-rw-r--r-- 1 root root 4935 2009-01-22 23:29 README
-rw-r--r-- 1 root root 1654 2009-01-22 23:29 SOURCE
drwxr-xr-x 158 root root 4096 2009-01-22 23:28 user
drwxr-xr-x 4 root root 4096 2009-03-12 03:54 vendors
debian:/home/N745/nuc700-uClinux/uClinux-dist#

Looks like it should be fairly easy, right?
Wrong.

The default build doesn’t work. Why would it be that easy.

You’ll end up with issues like:

entry-armv.S:782: Error: Internal_relocation (type 210) not fixed up
(OFFSET_IMM)
entry-armv.S:784: Error: Internal_relocation (type 208) not fixed up
(IMMEDIATE)

So, we need to make sure we start off fresh.
Also, note that we’re building for an N745 cpu, so we’ll need to configure that at the make config stage.
Lastly, and EXTREMELY important, is that we’ll need to put our required tools in the path.

DO NOT FORGET TO DO THIS
sample PATH below:

PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/arm_tools/bin


debian:/home/N745/nuc700-uClinux/uClinux-dist# PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/arm_tools/bin

debian:/home/N745/nuc700-uClinux/uClinux-dist#make clean

Now we have a choice - Recommend use make xconfig if possible.
You need to have a GUI, and have tk installed. (apt-get install tk)
Otherwise run make config, and run through the tediously large amount of questions

OPTION#preferred

debian:/home/N745/nuc700-uClinux/uClinux-dist#make xconfig

OPTION#not recommended

debian:/home/N745/nuc700-uClinux/uClinux-dist# make config
config/mkconfig > config.in
#
# No defaults found
#
*
* Target Platform Selection
*
*
* Choose a Vendor/Product combination.
*
Vendor/Product (nuvoton/nuc710, nuvoton/nuc740, nuvoton/nuc745) [nuvoton/nuc710] (NEW) nuvoton/nuc745

[For the rest, I used the defaults (except for the Network Tools questions, which I said Y to all)]

Continue here from whatever menu (x)config you used.

debian:/home/N745/nuc700-uClinux/uClinux-dist#make oldconfig

[Needed, or compile doesn't work]

debian:/home/N745/nuc700-uClinux/uClinux-dist#make dep

[A gazillion pages of info later, we have a build environment!]

We’re finally ready to use our weapon of mass destruction.


debian:/home/N745/nuc700-uClinux/uClinux-dist#make
...

It should compile without issue.

Next step is to mount our created rom image, and copy the binaries off, or just go to the compiled folders, and get the binaries.

I’ve done this step already, and have a zip file of a few useful files ready.

-rwxr-xr-x 1 root root 110888 2010-04-30 03:50 ftpd
-rwxr-xr-x 1 root root 55164 2010-04-30 03:52 ping
-rwxr-xr-x 1 root root 1201904 2010-04-30 03:51 ssh
-rwxr-xr-x 1 root root 1219864 2010-04-30 03:51 sshd
-rwxr-xr-x 1 root root 118004 2010-04-30 03:45 telnet
-rwxr-xr-x 1 root root 45460 2010-04-30 03:45 telnetd

file *
ftpd: BFLT executable – version 4 ram
ping: BFLT executable – version 4 ram
ssh: BFLT executable – version 4 ram
sshd: BFLT executable – version 4 ram
telnet: BFLT executable – version 4 ram
telnetd: BFLT executable – version 4 ram

Download that here – arm7-nettools

All we need to do now is mount our romfs image, unzip the arm7-nettools.zip, copy the arm7 bFLT binaries over to bin, add telnetd, sshd, and ftpd to our /bin/init, and rebuild by running genromfs on our filesystem.

We can then finally flash our new romfs, and test it out.

Don’t forget that romfs is a read only file system, so we can’t modify it by mounting it. We need to mount, copying everything to elsewhere, do our required bits and pieces, then rebuild.

eg

mount -o loop -t romfs still_unsure.img /mnt/test -r

mkdir /mnt/new
cd /mnt
rsync -arv /mnt/test/ new
cd new/bin
wget http://www.computersolutions.cn/blog/wp-content/uploads/2010/04/arm7-nettools.zip
unzip arm7-nettools.zip
rm arm7-nettools.zip

[We need to also edit init]
pico init

Add

sshd&
telnetd&
ftpd&

eg –
cat init
mount -t proc none /proc
mount -t ramfs none /usr
mount -t ramfs none /swap
mount -t ramfs none /var/run
mount -t ramfs none /etc
mount -t ramfs none /flash
mount -t ramfs none /home
camera&
sshd&
telnetd&
ftpd&
sh

Change to the next directory up, and lets run genromfs

genromfs -d new -f testrom.img
debian:/mnt# ls testrom.img
testrom.img
debian:/mnt# ls -al testrom.img
-rw-r–r– 1 root root 3329024 2010-04-30 04:18 testrom.img

In theory, this should be usable (famous last words!).

Unfortunately, I can’t try testing on that at home, as all the equipment is at the office, but that should be fairly easy.

Probably also some small config issues to sort out, as ftpd, telnetd and sshd will probably choke without their related /etc/whatever config files needed, but we can sort that out via serial on the debug ports.

flattr this!

Spent a while checking out the different binaries available for the different OEM versions.
Some interesting things I’ve found.

If I take a look at a sample kernel – eg
lr_cmos_11_14_1_46.bin

ls -al lr_cmos_11_14_1_46.bin
-rw-r--r-- 1 lawrence staff 1350539 Mar 15 13:47 lr_cmos_11_14_1_46.bin

Our file size for the file i have is 1350539 bytes.

A hexdump of the header shows:

00000000 42 4e 45 47 01 00 00 00 01 00 00 00 77 cb 0b 00 |BNEG……..w…|
00000010 00 d0 08 00 50 4b 03 04 14 00 00 00 08 00 3a 2e |….PK……..:.|
00000020 87 3b 3b e7 b8 16 03 cb 0b 00 bc d9 18 00 09 00 |.;;………….|

PK is the standard file header for Zip compression (as Zip was invented by Phil Katz)
Zip fingerprint in hex is – 0x04034b50, which matches nicely in our second line – 50 4b 03 04

On the offchance it contained a zip file, I tried unzipping from the start of the PK.

We can totally misuse dd to write from an offset of 20 bytes to a test.zip file as follows:


lawrence$ dd if=lr_cmos_11_14_1_46.bin of=test.zip skip=0x14 bs=1

(check I actually did that right)
lawrence$ hexdump -C test.zip |more
00000000 50 4b 03 04 14 00 00 00 08 00 3a 2e 87 3b 3b e7 |PK........:..;;.|
00000010 b8 16 03 cb 0b 00 bc d9 18 00 09 00 00 00 6c 69 |..............li|

Unfortunately this didn’t unzip.

However…

zipinfo test.zip
Archive: test.zip 1350519 bytes 1 file
-rw------- 2.0 fat 1628604 b- defN 7-Dec-09 05:49 linux.bin
1 file, 1628604 bytes uncompressed, 772867 bytes compressed: 52.5%

Says there is a valid zip file there, so we’re getting somewhere. It should be something like 772867 bytes + whatever Zip header / footer file bits in size.

If we take a look at the Zip file format, it says that the end of directory (aka end of zip file) marker is 0x06054b50

ZIP end of central directory record

Offset Bytes Description[4]
 0 4 End of central directory signature = 0x06054b50
 4 2 Number of this disk
 6 2 Disk where central directory starts
 8 2 Number of central directory records on this disk
10 2 Total number of central directory records
12 4 Size of central directory (bytes)
16 4 Offset of start of central directory, relative to start of archive
20 2 ZIP file comment length (n)
22 n ZIP file comment

If we search the file for that, we get:
000bcb70 78 2e 62 69 6e 50 4b 05 06 00 00 00 00 01 00 01 |x.binPK………|

So, from our Start PK 03 04 through to PK 05 06 we’re at position 0×14 through 0x0bcb79

If we write that out now –
dd if=lr_cmos_11_14_1_46.bin of=test.zip skip=0×14 bs=1 count=0x0bcb79

Then try unzip test.zip – we have a winner!

lawrence$ unzip test.zip
Archive: test.zip
inflating: linux.bin
lawrence$ ls -al test.zip
-rw-r--r-- 1 lawrence staff 772985 Apr 30 03:28 test.zip
lawrence$ ls -al linux.bin
-rw-------@ 1 lawrence staff 1628604 Dec 7 05:49 linux.bin

So, we know that the file has a header, then a zip file (which uncompresses to linux.bin, and has our linux binary), then more data.

If we take a look at what follows – ie the rest of the data in the original file after the end of the zip, it doesn’t look compressed

000bcb79 00 00 00 00 01 00 01 00 37 00 00 00 2a cb 0b 00 |……..7…*…|
000bcb89 00 00 2d 72 6f 6d 31 66 73 2d 00 08 cf a0 98 16 |..-rom1fs-……|
000bcb99 76 dd 72 6f 6d 20 34 62 31 63 62 36 38 66 00 00 |v.rom 4b1cb68f..|
000bcba9 00 00 00 00 00 49 00 00 00 20 00 00 00 00 d1 ff |…..I… ……|
000bcbb9 ff 97 2e 00 00 00 00 00 00 00 00 00 00 00 00 00 |…………….|
000bcbc9 00 00 00 00 00 60 00 00 00 20 00 00 00 00 d1 d1 |…..`… ……|
000bcbd9 ff 80 2e 2e 00 00 00 00 00 00 00 00 00 00 00 00 |…………….|
000bcbe9 00 00 00 00 00 c9 00 00 00 80 00 00 00 00 8c 88 |…………….|
000bcbf9 9d 47 73 77 61 70 00 00 00 00 00 00 00 00 00 00 |.Gswap……….|

000bd969 50 7d 64 68 63 70 63 00 00 00 00 00 00 00 00 00 |P}dhcpc………|
000bd979 00 00 62 46 4c 54 00 00 00 04 00 00 00 40 00 01 |..bFLT…….@..|
000bd989 11 70 00 01 37 60 00 01 50 e8 00 00 28 00 00 01 |.p..7`..P…(…|
000bd999 37 60 00 00 02 b5 00 00 00 05 00 00 00 00 00 00 |7`…………..|
000bd9a9 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |…………….|
000bd9b9 00 00 1f 8b 08 00 f4 6b 45 3f 02 03 dc 5b 0f 70 |…….kE?…[.p|
000bd9c9 14 d7 79 7f bb 77 a7 bf 07 9c fe f0 c7 48 a0 95 |..y..w.......H..|
000bd9d9 50 88 5c 23 b3 02 19 64 23 e0 84 30 76 72 b8 9c |P.\#...d#..0vr..|
000bd9e9 31 50 6c 2b 58 06 d7 25 84 d6 ea 80 6d 02 8c 7d |1Pl+X..%....m..}|
000bd9f9 48 02 64 17 b0 00 91 12 17 fb b6 29 ed 60 86 c6 |H.d........).`..|
000bda09 4c aa 74 34 0e 71 0e 90 03 d3 d2 54 fc 51 87 30 |L.t4.q.....T.Q.0|

In fact it looks like more files...

bFLT is our flat ELF header..., and the other bits in-between look suspiciously like more files, and folders.
So, we probably have a filesystem in there.

Its late, and thats all for today, but it looks like we might even get to play around with both the linux image and the web UI image.

Just had another thought though - if you recall, our romfs size was 0x0008D000

Image: 6 name:romfs.img base:0x7F0E0000 size:0x0008D000 exec:0x7F0E0000 -a

What do we see here - in our header? 00000010 00 d0 08 00


00000000 42 4e 45 47 01 00 00 00 01 00 00 00 77 cb 0b 00 |BNEG……..w…|
00000010 00 d0 08 00 50 4b 03 04 14 00 00 00 08 00 3a 2e |….PK……..:.|

Seem to have a match, no? 0x 08 d0 00
I'm going to bet that our 0x 00 0b cb 77 also has some meaning too in our header 20 bytes, especially as the linux.bin zip file size is close to that at 0x00 0b cb 79.

Its highly probable I've miscounted something with the offset, and thats going to turn out to be the zip file size.

Now I've gotten this far, I'm too excited to go to sleep (its 4am here now!)

Lets try the filesystem from where we left off (aka from 0x0bcb79)
dd if=lr_cmos_11_14_1_46.bin of=unsure_what_filesystem.img skip=0x0bcb79 bs=1

mount -r unsure_what_filesystem.img
mount: unsure_what_filesystem.img: unknown special file or file system.

Nope.

Kyle's blog comment has this gem in

however the ‘-romfs-’ tag is offset by 0×14

so I used the line

fx 6 romfs.img 0x7f0a0000 0x7f0a0014 -a

the system then rebooted correctly…”

Lets use that as the start.

hexdump -C unsure_what_filesystem.img |more
00000000 00 00 00 00 01 00 01 00 37 00 00 00 2a cb 0b 00 |........7...*...|
00000010 00 00 2d 72 6f 6d 31 66 73 2d 00 08 cf a0 98 16 |..-rom1fs-......|
00000020 76 dd 72 6f 6d 20 34 62 31 63 62 36 38 66 00 00 |v.rom 4b1cb68f..|

-rom1fs- starts at position 0x12 [which is another indicator that I'm off by 2 bytes somewhere - as they mention 0x14 bytes, and the 12bytes prefix I have prior to the -rom1fs- are going to be from our second file header, I'll bet...
0x0bcb79 - 2 = 0x0bcb77, which is what the previous header said, so that really makes me think thats the filesize now!

Our ROMFS works out to be 577 536 bytes, which is 0x8D000, which is also what the boot loader said, so getting a lot of good confirmation on these figures!]

Write that out to another file:
dd if=unsure_what_filesystem.img of=still_unsure.img skip=0×12 bs=1

Still doesn’t mount on my Mac, however, some more googling for rom1fs uclinux got me here

http://romfs.sourceforge.net/

Which specifically mentions –

Embedded projects using romfs

uClinux, the microcontroller Linux, is a port of the kernel, and selected user-space programs to capable, embedded processors, like some “smaller” Motorola m68k, and ARM systems.

ROMFS looks like:

offset content
+—+—+—+—+
0 | – | r | o | m | \
+—+—+—+—+ The ASCII representation of those bytes
4 | 1 | f | s | – | / (i.e. “-rom1fs-”)
+—+—+—+—+
8 | full size | The number of accessible bytes in this fs.
+—+—+—+—+
12 | checksum | The checksum of the FIRST 512 BYTES.
+—+—+—+—+
16 | volume name | The zero terminated name of the volume,
: : padded to 16 byte boundary.
+—+—+—+—+
xx | file |
: headers :

struct romfs_super_block
{

__u32 word0;

__u32 word1;

__u32 size;

__u32 checksum;

char name[0]; /* volume name */

};

Which looks to be a *very* good match for what that header has!
So, its in ROMFS format from the -rom1fs- start header.

(Mostly from here – http://zhwen.org/?p=articles/romfs)

Unfortunately my OSX box appears to be missing romfs support, so I can’t check it without going back to the office.

mount -o loop -t romfs still_unsure.img /mnt
mount: exec /System/Library/Filesystems/romfs.fs/Contents/Resources/mount_romfs for /mnt: No such file or directory

Booted up my Debian VM, and tried again.

debian:/mnt/hgfs/FI8908,FI8908W# mount -o loop -t romfs still_unsure.img /mnt/test -r
debian:/mnt/hgfs/FI8908,FI8908W# cd /mnt/test/
debian:/mnt/test# ls -al
total 4
drwxr-xr-x 1 root root 32 1969-12-31 18:00 .
drwxr-xr-x 4 root root 4096 2010-04-29 16:19 ..
drwxr-xr-x 1 root root 32 1969-12-31 18:00 bin
drwxr-xr-x 1 root root 32 1969-12-31 18:00 dev
drwxr-xr-x 1 root root 32 1969-12-31 18:00 etc
drwxr-xr-x 1 root root 32 1969-12-31 18:00 flash
drwxr-xr-x 1 root root 32 1969-12-31 18:00 home
drwxr-xr-x 1 root root 32 1969-12-31 18:00 proc
drwxr-xr-x 1 root root 32 1969-12-31 18:00 swap
drwxr-xr-x 1 root root 32 1969-12-31 18:00 usr

We have a winner!

Full file listing below:

.
|-- bin
| |-- camera
| |-- dhcpc
| |-- ifconfig
| |-- init
| |-- iwconfig
| |-- iwpriv
| |-- mypppd
| | |-- chap-secrets
| | |-- options
| | |-- pap-secrets
| | `-- pppd
| |-- route
| |-- rt73.bin
| |-- sh
| |-- wetctl
| `-- wpa_supplicant
|-- dev
| |-- console
| |-- display
| |-- dsp -> dsp1
| |-- dsp0
| |-- dsp1
| |-- fb0
| |-- hda
| |-- hda1
| |-- hda2
| |-- hdb
| |-- i2c0
| |-- i2c1
| |-- key
| |-- keypad
| |-- lp0
| |-- mixer -> mixer1
| |-- mixer0
| |-- mixer1
| |-- mouse
| |-- mtd0
| |-- mtd1
| |-- mtdblock0
| |-- mtdblock1
| |-- nftlA1
| |-- nftla
| |-- null
| |-- ppp
| |-- ppp1
| |-- ptmx
| |-- pts
| |-- ptyp0
| |-- ptyp1
| |-- ptyp2
| |-- ptyp3
| |-- ptyp4
| |-- ptyp5
| |-- ptyp6
| |-- ptyp7
| |-- ptyp8
| |-- ptyp9
| |-- ptz0
| |-- rom0
| |-- rom1
| |-- rom2
| |-- sda
| |-- sda1
| |-- sda2
| |-- sdb
| |-- sdb1
| |-- sdb2
| |-- smartcard0
| |-- smartcard1
| |-- tty
| |-- tty1
| |-- ttyS0
| |-- ttyS1
| |-- ttyS2
| |-- ttyS3
| |-- ttyp0
| |-- ttyp1
| |-- ttyp2
| |-- ttyp3
| |-- ttyp4
| |-- ttyp5
| |-- ttyp6
| |-- ttyp7
| |-- ttyp8
| |-- ttyp9
| |-- urandom
| |-- usb
| | |-- lp.sh
| | |-- lp0
| | |-- lp1
| | |-- lp2
| | |-- lp3
| | |-- lp4
| | |-- lp5
| | |-- lp6
| | |-- lp7
| | |-- lp8
| | `-- lp9
| |-- usi
| |-- video0
| `-- video1
|-- etc
|-- flash
|-- home
|-- proc
|-- swap
|-- usr
`-- var
`-- run

13 directories, 97 files

While I obviously can’t run any binaries locally, I can look at the text files to confirm that the ROMFS hasn’t just gotten the filesystem correct.

debian:/mnt/test/bin# cat init
mount -t proc none /proc
mount -t ramfs none /usr
mount -t ramfs none /swap
mount -t ramfs none /var/run
mount -t ramfs none /etc
mount -t ramfs none /flash
mount -t ramfs none /home
camera&
sh

debian:/mnt/test/bin# file camera
camera: BFLT executable - version 4 ram gzip

Looking *very* good.

Thats all for tonight, but it looks like we can easily add bits to the firmware using genromfs, dd, and a hex editor, or just genromfs, and someone willing to test a rebuilt user rom with an extra binary. Probably going to be telnetd as ssh requires a kernel recompile :(

Next step, actually doing that, and testing.

I’m definitely going to bed now – its 5:30am.

Tomorrow is a holiday though (in China), so happy May holidays!

flattr this!

I’ve finally received my 2nd camera, so I can now start working properly on it (assuming I get some free time too!)

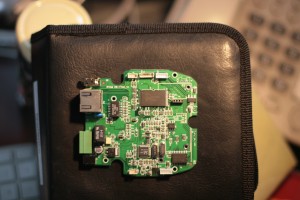

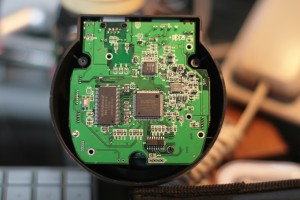

High resolution photos of the board are below:

Main parts used are:

RAM – Winbond W9812G61H-6 (2M)
According to the data sheet, that 2M X 4 BANKS X 16 BITS SDRAM @ 3.3V / 166MHz/CL3
Data sheet is here – http://jp.ic-on-line.cn/IOL/datasheet/w9812g6ih_4223255.pdf

Flash – Spansion S29AL016D (2M)
Other boards are populated with different providers – some people have Samsung flash…
Mine has the Spansion onboard both units. Its programmable onboard (via the uBoot)
Data sheet here – http://www.datasheetpro.com/259722_view_S29AL016D_datasheet.html

Sound Card – ALC203
This is obviously used as the BSP for the Novotel provides sample code for that card, making their life easier…
Data sheet here – http://realtek.info/pdf/alc203.pdf

Wired Ethernet – Davicom DM9161AEP (10/100 Ethernet)
Data sheet here –
http://www.davicom.com.tw/userfile/24247/DM9161AEPProductBrief_v1.0.pdf

8 Port Relay Driver (for the motors etc) – ULN2803
Data sheet here – http://www.rentron.com/Files/uln2803.pdf
More info / explanation here – http://wiki.answers.com/Q/What_is_Relay_driver_ULN2803

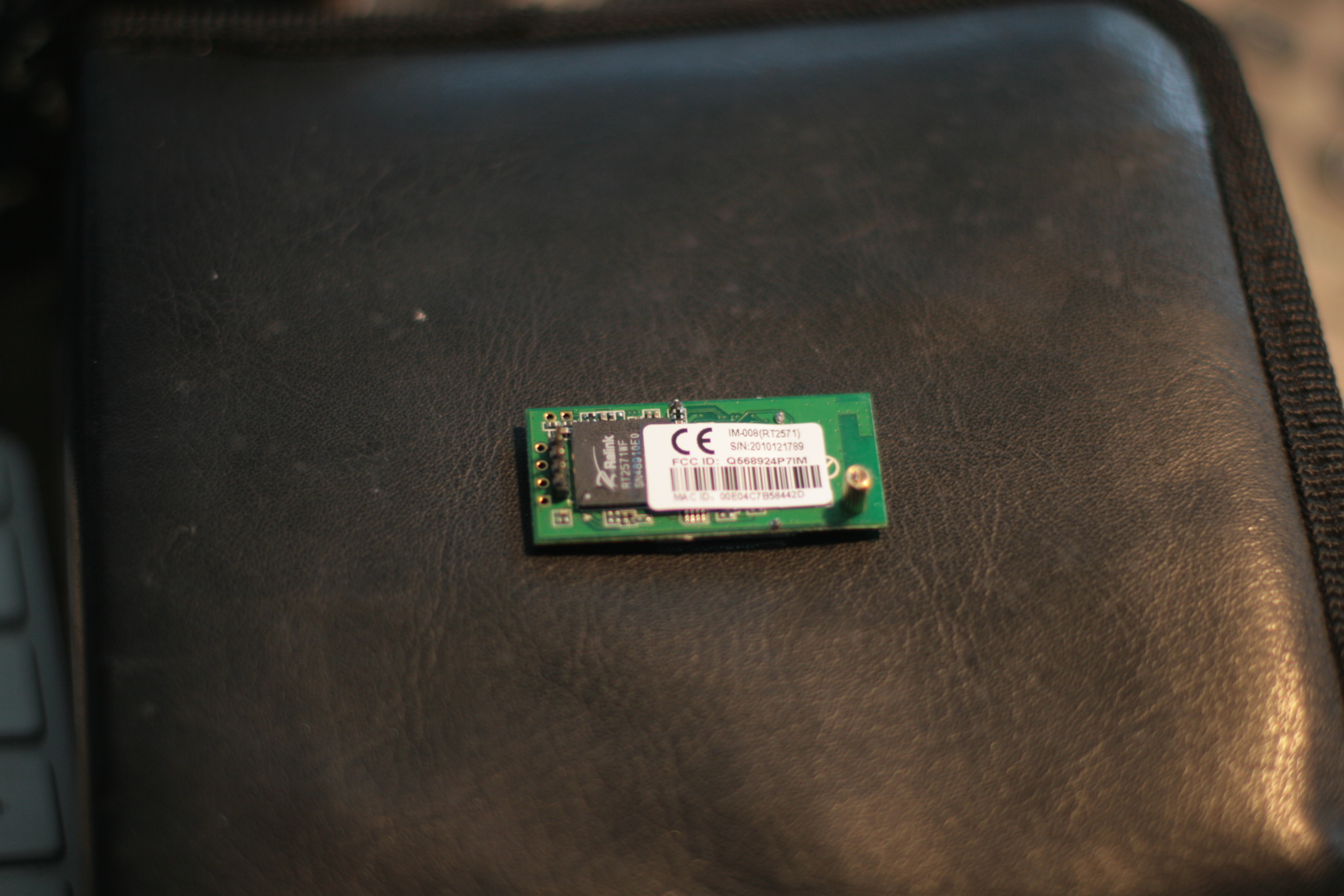

Wifi – RALINK 2571 (on daughterboard). Wireless G
This is a USB based chipset, so we’re using 4 usb connector pins for this one.
No datasheet, as Ralink are dicks.

CPU – ARM7 N745CDG (Arm 7 by Nuvoton)
Lot of info for chip available at Nuvoton.

W90N745 makes use of the ARM7TDMI microprocessor core of ARMR and 0.18um production to achieve standard operation at 80MHz. 128-Pin LQPF packing is also used to save electricity and lower costs. The built-in 4KBytes I-Cache and 4KBytes D-Cache of W90N745 can also be set as On-Chip RAM according to the needs of product developers. With regards to system integration, W90N745 is suitable for network-related applications such as management switch, IP cameras, VoIP and printer servers.
Features
* One Ethernet MAC
* One USB 2.0 full speed Host controller
* One USB 2.0 full speed Host/Device controller
* AC97/I2S
* 4 UARTs
* I²C Master
* 31 GPIOs
* Power Management

Data sheets – http://www.nuvoton.com/hq/enu/ProductAndSales/ProductLines/ConsumerElectronicsIC/ARMMicrocontroller/ARMMicrocontroller/NUC745A.htm
The uclinux sample distribution and files can be downloaded here – http://www.metavert.com/public/NO-SUPPORT/NUC700%20Series%20MCU%20uCLinux%20BSP.zip

I’m just waiting on a JLINK USB adaptor, then I’m ready to roll.

[Updates]

David M from comments at http://irishjesus.wordpress.com/2010/03/30/hacking-the-foscam-fi8908w/#comments provided his rom sizing from his device, I’ve got some notes on that here.

MAC Address : 00:30:10:C1:D0:39
IP Address : 0.0.0.0
DHCP Client : Enabled
CACHE : Enabled
BL buffer base : 0×00300000
BL buffer size : 0×00100000
Baud Rate : -1
USB Interface : Disabled
Serial Number : 0xFFFFFFFF

For help on the available commands type ‘h’

Press ESC to enter debug mode …

bootloader > ls
Image: 0 name:BOOT INFO base:0x7F010000 size:0×00000038 exec:0x7F010000 -af
Image: 7 name:linux.bin base:0x7F020000 size:0x000BB334 exec:0×00008000 -acxz
Image: 6 name:romfs.img base:0x7F0E0000 size:0x0008D000 exec:0x7F0E0000 -a

My notes:

Image: 0 name:BOOT INFO base:0x7F010000 size:0×00000038 exec:0x7F010000 -af

[Image 0 is 38 bytes (small!).
Boot info is not the bootloader - 38bytes is way too small for that.
It actually stores our bootloader config settings.
eg ip address, cache setting, boot loader buffer address etc.
Our initial settings are below:

MAC Address : 00:30:10:C1:D0:39 (should be changed, this Mac range belongs to Cisco!)
IP Address : 0.0.0.0 (unset)
DHCP Client : Enabled (pulls ip from dhcp..)
CACHE : Enabled (onboard chip cache)
BL buffer base : 0×00300000
BL buffer size : 0×00100000
Baud Rate : -1 (unset / so defaults to 115,200,8,n,1)
USB Interface : Disabled (NC745 has no USB for bootloader)
Serial Number : 0xFFFFFFFF (unset)

-af indicates Active (a) , and is a Filesystem image (f)]

Image: 7 name:linux.bin base:0x7F020000 size:0x000BB334 exec:0×00008000 -acxz
[Image 7 is our OS - Linux 2.4.20 ucLinux Not sure why Maverick didn't build on 2.6, there is more hardware support. Probably time dependant - 2.6 may not have been available, plus the Nuvoton sample code is also 2.4 based...

-axcz says active (a) executable (x) copied to ram (c) compressed (z) ]

Image: 6 name:romfs.img base:0x7F0E0000 size:0x0008D000 exec:0x7F0E0000 -a

[Our rom image - aka userland stuff. This is where we'll be putting our own code. Looks like its stuck quite high up in the flash, although doesn't need to be given size of the Linux rom. We have plenty of room available.

We'll need to make appropriate changes to Image 6 size on flashing

-a says active partition.]

flattr this!

Finally got a chance to play around with the second ipcam I bought.

This one is a little bit smarter than the previous one – its running off an ARM5ARM7 CPU (Nuvoton NUC745ADN), so has a bit more oomph. 16M ram is a whole lot more to play with for a start! The last device only had 16KB, so this puppy can be taught to do some tricks!

Serial was a little bit trickier to solder on this time – my initial connectors were too small, so had to resolder with larger ones, and I managed to mess up a tad. Never said my soldering was any good ;)
Getting it to talk to the computer was a bit painful too – eventually I settled on 115,200 8,n,1, xon/xoff which should have worked the first time around, but I was getting garbage.

Probably flow control (xon/xoff), as fiddling with the connections got it going eventually.

First output from the board is below – this is from a clean boot (with no ethernet or wifi).


W90P745 Boot Loader [ Version 1.1 $Revision: 1 $ ] Rebuilt on Dec 10 2009
Memory Size is 0x1000000 Bytes, Flash Size is 0x200000 Bytes
Board designed by Winbond
Hardware support provided at Winbond
Copyright (c) Winbond Limited 2001 - 2006. All rights reserved.
Boot Loader Configuration:

MAC Address : 0E:F2:B3:DC:08:05
IP Address : 0.0.0.0
DHCP Client : Enabled
CACHE : Enabled
BL buffer base : 0x00300000
BL buffer size : 0x00100000
Baud Rate : -1
USB Interface : Disabled
Serial Number : 0xFFFFFFFF

For help on the available commands type 'h'

Press ESC to enter debug mode ......
Cache enabled!
Processing image 1 ...
Processing image 2 ...
Processing image 3 ...
Processing image 4 ...
Processing image 5 ...
Processing image 6 ...
Processing image 7 ...
Unzip image 7 ...
Executing image 7 ...
Linux version 2.4.20-uc0 (root@maverick-linux) (gcc version 3.0) #1013 Èý 12ÔÂ 2 13:17:32 CST 2009
Processor: Winbond W90N745 revision 1
Architecture: W90N745
On node 0 totalpages: 4096
zone(0): 0 pages.
zone(1): 4096 pages.
zone(2): 0 pages.
Kernel command line: root=/dev/rom0 rw
Calibrating delay loop... 39.83 BogoMIPS
Memory: 16MB = 16MB total
Memory: 14376KB available (1435K code, 288K data, 40K init)
Dentry cache hash table entries: 2048 (order: 2, 16384 bytes)
Inode cache hash table entries: 1024 (order: 1, 8192 bytes)
Mount-cache hash table entries: 512 (order: 0, 4096 bytes)
Buffer-cache hash table entries: 1024 (order: 0, 4096 bytes)
Page-cache hash table entries: 4096 (order: 2, 16384 bytes)
POSIX conformance testing by UNIFIX
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Initializing RT netlink socket
Starting kswapd
Winbond W90N745 Serial driver version 1.0 (2005-08-15) with no serial options enabled
ttyS00 at 0xfff80000 (irq = 9) is a W90N745
Winbond W90N7451 Serial driver version 1.0 (2005-08-15) with no serial options enabled
ttyS00 at 0xfff80100 (irq = 10) is a W90N7451
I2C Bus Driver has been installed successfully.
Blkmem copyright 1998,1999 D. Jeff Dionne
Blkmem copyright 1998 Kenneth Albanowski
Blkmem 1 disk images:
0: 7F0E0000-7F16D3FF [VIRTUAL 7F0E0000-7F16D3FF] (RO)
AM29LV160DB Flash Detected
01 eth0 initial ok!
which:0
PPP generic driver version 2.4.2
Linux video capture interface: v1.00
Winbond Audio Driver v1.0 Initialization successfully.
usb.c: registered new driver hub
add a static ohci host controller device
: USB OHCI at membase 0xfff05000, IRQ 15
hc_alloc_ohci
usb-ohci.c: AMD756 erratum 4 workaround
hc_reset
usb.c: new USB bus registered, assigned bus number 1
hub.c: USB hub found
hub.c: 2 ports detected
usb.c: registered new driver audio
audio.c: v1.0.0:USB Audio Class driver
usb.c: registered new driver serial
usbserial.c: USB Serial Driver core v1.4

_____ ____ _ ____
|__ / _| _ \ / \ / ___|
/ / | | | | | |/ _ \ \___ \
/ /| |_| | |_| / ___ \ ___) |
/____\__, |____/_/ \_\____/
|___/
ZD1211B - version 2.24.0.0
usb.c: registered new driver zd1211b
main_usb.c: VIA Networking Wireless LAN USB Driver 1.13
usb.c: registered new driver vntwusb
usb.c: registered new driver rt73
dvm usb cam driver 0.0.0.0 by Maverick Gao in 2006-8-12
usb.c: registered new driver dvm
dvm usb cam driver 0.1 for sonix288 by Maverick Gao in 2009-4-20
usb.c: registered new driver dvm usb cam driver for sonix288
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP
IP: routing cache hash table of 512 buckets, 4Kbytes
TCP: Hash tables configured (established 1024 bind 2048)
VFS: Mounted root (romfs filesystem) readonly.
Freeing init memory: 40K
BINFMT_FLAT: bad magic/rev (0x74202d74, need 0x4)
BINFMT_FLAT: bad magic/rev (0x74202d74, need 0x4)
Shell invoked to run file: /bin/init
Command: mount -t proc none /proc
Command: mount -t ramfs none /usr
Command: mount -t ramfs none /swap
Command: mount -t ramfs none /var/run
Command: mount -t ramfs none /etc
Command: mount -t ramfs none /flash
Command: mount -t ramfs none /home
Command: camera&
[8]
Command: sh
no support

Sash command shell (version 1.1.1)
/> hub.c: connect-debounce failed, port 1 disabled
new USB device :80fd7e04-fed640
hub.c: new USB device 1, assigned address 2
dvm cmos successfully initialized
dvm camera registered as video0
new USB device :80fb0204-fed640
hub.c: new USB device 2, assigned address 3
idVendor = 0x148f, idProduct = 0x2573

Wait for auto-negotiation complete...ResetPhyChip Failed
video0 opened
1
1
1
1
1
1
set resolution 5
set brightness 144
set contrast 3
set sharpness 3
set mode 2
__pthread_initial_thread_bos:34c000
manage pid:16
audio_dev.state not AU_STATE_RECORDING
wb_audio_start_record
=> usb_rtusb_open
retide_ddns.c: can not get server dns.camcctv.com ip
ntpc.c: can not resolve ntpserver(time.nist.gov)'s ip
get oray info
upnp get ip error
inet_sr.c INET_rinput 321
action===1
options==33
inet_sr.c INET_setroute 75
*args===255.255.255.255
*args===netmask
*args===eth1
inet_sr.c INET_rinput 321
action===1
options==33
inet_sr.c INET_setroute 75
*args===default
*args===gw
*args===eth1
MlmeAssocReqAction(): WPA2/WPA2PSK fill the ReqVarIEs with CipherTmp!
3
3
3
3
3
3

Initially I had the board setup on its own without the camera attached, but the boot scripts require it connected, otherwise they reboot..
Ostensibly, this is the same hardware as the fi8908w (who are just reselling the OEM version with marginally different firmware as far as I can tell).

Next step is to setup a cross compiler for uclinux so I can make some binaries, and test.
Luckily all the available tools are open source / free. Yay!

I’m in contact with the factory, and they’ll be sending an SDK over at some point soonish, although its only in Chinese.
Luckily for me, that shouldn’t be a problem, as i’m reasonably capable at groking both code, and simplified chinese :)

ucLinux should be easy enough to build a rom image for though – tons of examples, and I already have a few firmware files to compare.

It shouldn’t be too hard for me to roll another firmware with ssh installed, so that we can get in without serial, that would be more useful for others too.

I’ve had a quick look inside the folders in the device from the device itself – fairly minimal, pretty much the only binaries are the necessary ones.
My initial aim is to redo the UI to a nicer one, and fix some of the more glaring bugs. The factory people are at a trade show in Taiwan this week, so hopefully next week I’ll get some dev tools (otherwise its reverse engineering, bleh…).

Some more people are playing with these as well (links below):

http://irishjesus.wordpress.com/2010/03/30/hacking-the-foscam-fi8908w/

http://www.gadgetvictims.com/2009/12/bring-your-fi8908w-paperweight-back-to.html

Unfortuanately for me, both are variably accessible. WordPress is available this week woohoo, but its an on / off dealio with the GFW…, so I might have to stop commenting there once the government decides if WordPress is “teh evil” again.

The irishjesus blog guy has done some of the harder bits like file extraction already (although not strictly necessary, as there are existing tools for that kind of thing).

Updates

Have some docs from the factory now, see attached file for the CGI spec.

IP Camera CGI 应用指南-1.11

I have others, but not so relevant especially for those than don’t read Chinese!

Data sheet for the Chip and build instructions here -

http://www.nuvoton.com/hq/enu/ProductAndSales/ProductLines/ConsumerElectronicsIC/ARMMicrocontroller/ARMMicrocontroller/NUC745A.htm

flattr this!

When I was younger, I used to like taking things apart.  I still do that, but they tend to work better these days, hehe

This last few weeks I’ve been playing with IP Camera’s for a pet project that started off as a request over Skype for info about surveillance.
As the ever useful Taobao is full of vendors selling the same 4 or 5 camera’s for reasonable prices I ordered a couple to take a peek at.

I’ve only taken one apart so far – the really really cheap one that I installed in the office so I can get a look at who comes up the stairs without having to move my fat ass out of the chair.  A quick shortcut in FF, and it works quite nicely as a separate browser window in the corner of the desktop.

Onto the discovery phase :)

I had a quick spin with NMAP, but other than discovering that they rather naughtily misuse a Mac Address assigned to the evil Cisco, not much help.
Also nothing appeared to be running on any other ports than the web port :(
nmap -A 192.168.0.88

Starting Nmap 5.00 ( http://nmap.org ) at 2010-04-13 19:27 CST
Interesting ports on 192.168.0.88:
Not shown: 999 filtered ports
PORT STATE SERVICE VERSION
80/tcp open http?
|_ html-title: IPCamera
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at http://www.insecure.org/cgi-bin/servicefp-submit.cgi :
SF-Port80-TCP:V=5.00%I=7%D=4/13%Time=4BC45529%P=i686-pc-linux-gnu%r(GetReq
SF:uest,2E1,"HTTP/1\.1\x20200\x20OK\r\nExpires:\x200\r\nConnection:\x20clo
SF:se\r\ncache-control:\x20no-cache\r\n\r\n\r\n
SF:IPCamera\r\n\r
SF:\n\r\n\r\n\r\n\r\n
SF:\r\n\r\n\r\n\r\n\r\n\r\n\r\n<BODY\x20onLoad=\" SF:doPop\(\);\">\xb6\xd4\xb2\xbb\xc6\xf0\xa3\xac\xc4\xfa\xb5\xc4\xe4\xaf\x
SF:c0\xc0\xc6\xf7\xb2\xbb\xd6\xa7\xb3\xd6\xbf\xf2\xbc\xdc\xa3\xa1</BODY></ SF:NOFRAMES>\r\n</FRAMESET>\r\n\r\n</HTML>\r\n")%r(FourOhFourRequest,1DF,"
SF:HTTP/1\.1\x20200\x20OK\r\nConnection:\x20close\r\ncache-control:\x20no-
SF:cache\r\n\r\n<HTML>\r\n<HEAD>\r\n<TITLE></TITLE>\r\n<meta\x20http-equiv SF:=\"Content-Type\"\x20content=\"text/html;\x20charset=gb2312\"></HEAD>\r
SF:\n<BODY\x20BGCOLOR=\"#C4CEEF\"\x20onLoad=\"window\.status='\xbb\xb6\xd3 SF:\xad\xca\xb9\xd3\xc3\xcd\xf8\xc2\xe7\xc9\xe3\xcf\xf1\xbb\xfa!';return\x SF:20true;\">\r\n\r\n
<TABLE\x20WIDTH=140\x20BORDER=0\x20CELLSPACING=0\x20C SF:ELLPADDING=0>\r\n
<TR>\r\n\t
<TD\x20HEIGHT=80\x20ALIGN=center\x20BGCOLOR= SF:\"#C4CEEF\"><FONT\x20color=\"#FF6633\"\x20size=\"\+2\"\x20FACE=\"Arial\ SF:"><B>IP\x20Camera</B></FONT></TD>

\r\n</TR>

\r\n</TABLE>

\r\n\r\n</BODY>\r
SF:\n</HTML>\r\n");
MAC Address: 00:0A:42:33:66:54 (Cisco Systems)
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
OS fingerprint not ideal because: Missing a closed TCP port so results incomplete
No OS matches for host
Network Distance: 1 hop

Next up is the usual dissection. I had done some minor googling on the device I bought, which is basically this below:

As its an OEM product, this is available under a whole bunch of different names – mostly with IP-510 or similar in the title, eg LTI-510 etc.

For a cheap OEM product, it actually seems to be reasonably well made though – the Case is an nice and solid aluminium sheath that looks like its been repurposed from something else, and the board itself is suprisingly well diagrammed. Its almost made for hacking!

Chips onboard are as follows:

25.0618mhz crystal from TXC – bonus points for why its 25mhz. Reply in the comments :)
Davicom DM9008AEP, TRC9016NLE (both for Ethernet. imho Davicom is a second-rate Realtek)
ViMicro VC0528BRVC (Camera processor / CCD Controller)
And last, but not least, our CPU, which is an 8051, although not from ATMEL.
Part number on that is C8051F340. My first guess is that it incorporates some integrated flash on there for firmware. Unfortunately its likely to be all C and Assembler, and the last time I did embedded 8051 stuff was in the early 90′s.

Google confirms it – basically its an all in one controller with 32 or 64KB onboard, and roughly 4k ram. Woohoo!

Datasheet here – http://www.alldatasheet.com/datasheet-pdf/pdf/182721/SILABS/C8051F340.html

Good news is that the board has serial out clearly labeled on the top left side. Better news is that the chip has an onboard debug mode, so I don’t even need any ICE (In Circuit Emulation) tools should I want to take a look. Bad news is that I’m probably going to be too lazy to do it, as its more work and less fun than the second one I bought, which has Linux running on it.

That said, this one is cheap. Real cheap. Cheap enough that its probably worth knocking out a decent firmware, and reselling it with a better UI, and more features.
Might be possible, although anything more than whats there is probably stretching it given the ram / storage constraints. Looks like its all offboard processing/streaming for this model!

There are also some unpopulated spots on the board, which I strongly suspect would be for audio, given the board has a MIC input and no Mic, and the main controller is a ViMicro, which supports MP3 output also…

I’ll see if I can find a firmware file, and do a disassembly, or more probably see what I get out of the serial port connection in the near future.

Photos below. [Excuse the pasty white hands, its still winter for some reason in Shanghai, despite being April... Oh global warming. Where art thou, when I needest thee!]:

Some further files for the curious here –

http://kuklin.ru/ip400cam

Archives

Categories

Most Popular Posts

Tags

Recent Comments

  • Roy Anderson: You can purchase biltong, boerewors and droewors in China from www.aargeez.com.
  • Lawrence Sheed: One can also try their page here -> http://www.bing.com/webmaster/ help/how-to-report-an-issue...
  • Lawrence Sheed: As an update, this was happening *again* for us starting in december again, so screw it, rolling...
  • Cristian: Good day, it is possible to change video resolution in sunglasses camera from 1280 x 720 to 320 x 240?...
  • John: Seriously!!! I’m getting crawled like crazy by msnbot/bingbot and I even disallowed them completely but...

Recent Trackbacks

PHOTOSTREAM

uploaduploadTraffic dept building in townuploaduploaduploaduploaduploaduploaduploaduploadTotal produced since nov 18 2013uploaduploaduploaduploaduploadupload
